Hibernate Composite Key Mapping Example

In the context of relational databases, a composite key is a combination of two or more columns in a table that can be used to make the uniqueness of a table row. In this tutorials, we are going to implement how to define a hibernate composite key, How to map the database composite primary keys in a hibernate mapping.

Here is the example for Hibernate composite key:

Hibernate Composite Key Mapping :

Lets create a database table with composite primary key.

CREATE TABLE `student` (
`studentid` int(11) NOT NULL AUTO_INCREMENT,
`courceid` int(11) NOT NULL,
`studentname` varchar(50) DEFAULT NULL,
`studentAddress` varchar(50) DEFAULT NULL,
PRIMARY KEY (`studentid`,`courceid`) ) ENGINE=InnoDB AUTO_INCREMENT=1

Project Structure :

Hibernate Composite Key Example

Required Dependencies :


        <dependencies>
            <!-- Hibernate -->
            <dependency>
                <groupId>org.hibernate</groupId>
                <artifactId>hibernate-core</artifactId>
                <version>4.3.0.Final</version>
            </dependency>
            <!-- MySQL Driver -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>5.0.5</version>
            </dependency>
        </dependencies>

HibernateUtility :

HibernateUitl.java


package com.onlinetutorialspoint.util;

import org.hibernate.SessionFactory;
import org.hibernate.boot.registry.StandardServiceRegistryBuilder;
import org.hibernate.cfg.Configuration;

public class HibernateUtil {
    private HibernateUtil() {

    }

    private static SessionFactory sessionFactory;

    public static synchronized SessionFactory getInstnce() {

        if (sessionFactory == null) {
            Configuration configuration = new Configuration().configure("hibernate.cfg.xml");
            StandardServiceRegistryBuilder builder = new StandardServiceRegistryBuilder()
                    .applySettings(configuration.getProperties());
            sessionFactory = configuration.buildSessionFactory(builder.build());
        }
        return sessionFactory;

    }
}

Hibernate POJO:

Student.java


package com.onlinetutorialspoint.beans;

import java.io.Serializable;

public class Student implements Serializable {

    private static final long serialVersionUID = 1L;
    private int studentId;
    private String studentName;
    private String studentAddress;
    private int courceId;

    public int getStudentId() {
        return studentId;
    }

    public void setStudentId(int studentId) {
        this.studentId = studentId;
    }

    public String getStudentName() {
        return studentName;
    }

    public void setStudentName(String studentName) {
        this.studentName = studentName;
    }

    public String getStudentAddress() {
        return studentAddress;
    }

    public void setStudentAddress(String studentAddress) {
        this.studentAddress = studentAddress;
    }

    public int getCourceId() {
        return courceId;
    }

    public void setCourceId(int courceId) {
        this.courceId = courceId;
    }

}

To represent the composite key in hibernate, the pojo class should implement the Serializable interface. Otherwise hibernate will throw org.hibernate.MappingException like “Composite-id class must implement Serializable”

Hibernate Mapping File :

student.hbm.xml


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC
  "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
  "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
    <class name="com.onlinetutorialspoint.beans.Student" table="student">
        <composite-id>
            <key-property name="studentId" column="studentid" />
            <key-property name="courceId" column="courceid" />
        </composite-id>
        <property name="studentName" />
        <property name="studentAddress" />
    </class>
</hibernate-mapping>

To represent the composite keys, hibernate provides <key-property> tag under the <composite-id> tag.

We can represent each primary key with <key-property> tag, so that all primary keys will be binded with the <composite-id> tag.

Lets Run the Application :

Main.java


import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.Transaction;

import com.onlinetutorialspoint.beans.Student;
import com.onlinetutorialspoint.util.HibernateUtil;

public class Main {
    public static void main(String args[]) {
        SessionFactory sessionFactory = HibernateUtil.getInstnce();
        Session session = sessionFactory.openSession();
        Student student = new Student();
        student.setStudentId(103);
        student.setStudentAddress("Hyderabad");
        student.setStudentName("Johny");
        student.setCourceId(201);
        Transaction tx = session.beginTransaction();
        session.save(student);
        tx.commit();
        session.close();
    }
}

Output:

Hibernate: insert into student (studentName, studentAddress, studentid, courceid) values (?, ?, ?, ?)

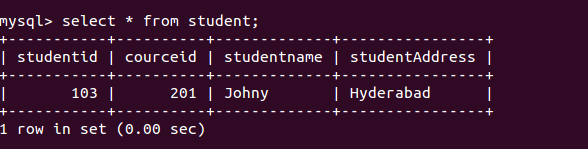

Hibernate composite key table



Download Example
