How to draw shapes using Graphics

In this tutorial I am going to show you how to draw shapes using Graphics in Java. Graphics is a abstract base class for all graphics contexts.  This class allows us to draw on components.

Draw shapes using Graphics :

For this example, I am going to draw Rectangles and Ovals on JPanel component.

drawRect() : This method allows us to draw a rectangle with a specific/given dimensions.

drawOval() : This method allows us to draw oval with given dimensions.


package com.onlinetutorialspoint.swing;

import java.awt.Graphics;

import javax.swing.JFrame;
import javax.swing.JOptionPane;
import javax.swing.JPanel;

public class DrawShapes extends JPanel {
    private int input;

    public DrawShapes(int choice) {
        input = choice;
    }

    public void paintComponent(Graphics g) {
        super.paintComponent(g);
        for (int i = 0; i < 10; i++) {
            switch (input) {
            case 1:
                g.drawRect(10+i*10, 10+i*10, 50+i*10, 50+i*10);
                break;
            case 2:
                g.drawOval(10+i*10, 10+i*10, 50+i*10, 50+i*10);
                break;
            }
        }
    }
    public static void main(String[] args) {
        String choice = JOptionPane.showInputDialog("Enter 1 to draw rectangles \n"+"Enter 2 to draw Ovals");
        DrawShapes shapes = new DrawShapes(Integer.parseInt(choice));
        JFrame frame = new JFrame();
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.add(shapes);
        frame.setSize(300, 300);
        frame.setVisible(true);
    }
}

Output :

draw shapes using Graphics 1

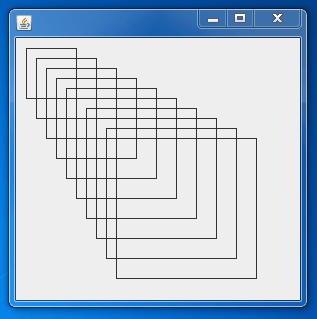

Draw Rectangles :

draw shapes using Graphics 2

Selecting Ovals :

draw shapes using Graphics 3-

Draw Ovals :

draw shapes using Graphics 4

Happy Learning 🙂
