Spring MVC Form Validation Example

Here I am going show a simple Spring MVC Form Validation Example.

Technologies :

  • Spring Framework 3.1.1.RELEASE
  • Hibernate Validator 4.2.0.Final
  • Jstl 1.2
  • Java 8

Spring MVC Form Validation :

Here we are going to validate registration form with different fields like firstName, lastName, age, email by using simple spring validation framework.

Project Structure :

Spring MVC Form Validation



Spring MVC Form Validation Example :

Dependencies : pom.xml


	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.hibernate/hibernate-validator -->
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-validator</artifactId>
			<version>4.2.0.Final</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
	</dependencies>

RegistrationBean.java

package com.spring.controller;

import javax.validation.constraints.Max;
import javax.validation.constraints.Min;
import javax.validation.constraints.NotNull;
import javax.validation.constraints.Pattern;
import javax.validation.constraints.Size;

public class RegistrationBean {

	@NotNull
	@Size(min = 1, message = "You can't leave this empty.")
	private String firstName;

	@NotNull
	@Size(min = 1, message = "You can't leave this empty.")
	private String lastName;

	@NotNull(message = "You can't leave this empty.")
	@Min(value = 13, message = "You must be greater than or equal to 13")
	@Max(value = 19, message = "You must be less than or equal to 19")
	private Integer age;

	@Pattern(regexp = "^[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\\.[A-Za-z]{2,6}$", message = "Invalid email")
	private String email;

	public String getFirstName() {
		return firstName;
	}

	public void setFirstName(String firstName) {
		this.firstName = firstName;
	}

	public String getLastName() {
		return lastName;
	}

	public void setLastName(String lastName) {
		this.lastName = lastName;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	public String getEmail() {
		return email;
	}

	public void setEmail(String email) {
		this.email = email;
	}

}

@NotNull : It won’t allow the null values.
@Min(13) : Won’t allow if the age is min of 13
@Max(19) : Won’t allow if the age is max of 19
@Pattern : Applyed given regex patten on specified field (our case it is email)

Registration Form : register.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Spring MVC Form Validation</title>
<style>
.error {
color: red
}
</style>
</head>
<body>
<form:form action="processForm" modelAttribute="registration">

<div align="center">
<h2>Register Here</h2>
<table>
<tr>
<td>First name</td>
<td><form:input type="text" path="firstName" /></td>
<td><form:errors path="firstName" cssClass="error" /></td>
</tr>
<tr>
<td>Last name (*)</td>
<td><form:input type="text" path="lastName" /></td>
<td><form:errors path="lastName" cssClass="error" /></td>
</tr>
<tr>
<td>Age </td>
<td><form:input type="text" path="age" /></td>
<td><form:errors path="age" cssClass="error" /></td>
</tr>
<tr>
<td>Email </td>
<td><form:input type="text" path="email" /></td>
<td><form:errors path="email" cssClass="error" /></td>
</tr>
<tr>
<td></td>
<td><input type="submit" value="Submit" /></td>
</tr>
</table>
</div>
</form:form>
</body>
</html>

Registration Controller : RegistrationController.java

package com.spring.controller;

import javax.validation.Valid;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class RegistrationController {

	@RequestMapping(value = "/register", method = RequestMethod.GET)
	public String showForm(Model model) {
		model.addAttribute("registration", new RegistrationBean());
		return "register";
	}

	@RequestMapping(value = "/processForm", method = RequestMethod.POST)
	public String processForm(@Valid @ModelAttribute("registration") RegistrationBean register,
			BindingResult bindingResult) {
		if (bindingResult.hasErrors()) {
			return "register";
		} else {
			return "success";
		}

	}
}

properties file :

typeMismatch.registration.age=Invalid Number

Success page : success.jsp


<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<title>Registration Confirmation</title>
</head>
<body>
Hello <font color="green">${registration.firstName} ${registration.lastName} </font> you have successfully registered with us.
</body>
</html>

Run the application :

http://localhost:8080/Spring-MVC-Form-Validation/register

Spring MVC Form Validation

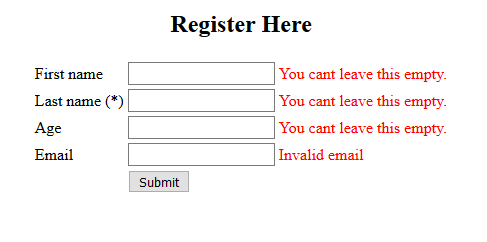

Invalid Form Fields :

Leaving all form fields empty.

Spring MVC Form Validation Error

Invalid Age :

Using @Max and @Min validations on age attribute.

Spring MVC Form Validation 3

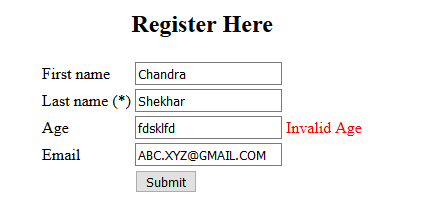

Invalid Age Format :

Giving invalid age (Not a number) validation

Spring MVC Form Validation 5

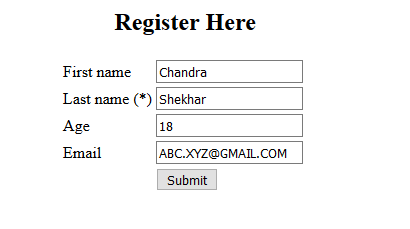

Success Form :

Spring MVC Form Validation Success

Success Page :

Spring MVC Form Validation successpage

Happy Learning 🙂

Download Example
