How to Enable Spring Boot CORS Example – @CrossOrigin

By |2019-06-06T10:05:29+05:30June 2nd, 2019|Spring Boot|

In this tutorial, we are going to see How to Enable Spring Boot CORS example.

Cross-Origin Request Blocked: The Same Origin Policy disallows reading the remote resource at http://localhost:8080/greet. (Reason: CORS header ‘Access-Control-Allow-Origin’ missing).

How to Enable Spring Boot CORS Example:

As part of this example, I am going to develop two different spring boot applications, one is acting as a rest service which provides simple rest end-point, and another one consumes the reset service using ajax call.

Technologies:

  • Spring Boot Started WEB 2.1.5
  • Java 8
  • Maven

1. Spring Boot CORS Rest Service:

Creating a simple Spring Boot Rest service application.

1.1 Project Structure:

How to Enable Spring Boot CORS-min

1.2 Project Dependencies:

pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.1.5.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>
  <groupId>com.onlinetutorialspoint</groupId>
  <artifactId>Spring-Boot-CORS-Example</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <name>Spring-Boot-CORS-Example</name>
  <description>Spring Boot CORS Example</description>

  <properties>
    <java.version>1.8</java.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
  </dependencies>
  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

1.3 Creating a Simple Rest Controller:

Creating a simple HelloController, which exposes a greet rest endpoint.

HelloController.java
package com.onlinetutorialspoint.conroller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

    @GetMapping("/greet")
    public String greet(){
        return "Hello From Spring CORS  Resource";
    }
}

1.4 Main class:

SpringBootCorsExampleApplication.java
package com.onlinetutorialspoint;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootCorsExampleApplication {

  public static void main(String[] args) {
    SpringApplication.run(SpringBootCorsExampleApplication.class, args);
  }

}

1.5 Run It:

Terminal
  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.1.5.RELEASE)

2019-06-02 10:35:53.375  INFO 5164 --- [           main] c.o.SpringBootCorsExampleApplication     : Starting SpringBootCorsExampleApplication on DESKTOP-RN4SMHT with PID 5164 (D:\work\Spring-Boot-CORS-Example\target\classes started by Lenovo in D:\work\Spring-Boot-CORS-Example)
2019-06-02 10:35:53.384  INFO 5164 --- [           main] c.o.SpringBootCorsExampleApplication     : No active profile set, falling back to default profiles: default
2019-06-02 10:35:57.943  INFO 5164 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)

As you can see, the application has been running on 8080 port.

Let’s create a client application and try access the /greet endpoint.

2. Spring Boot Client App:

Creating a simple Spring Boot Web MVC app using thymeleaf to access the above service application.

2.1 Application Structure:

How to Enable Spring Boot CORS 2-min

2.2 Create HomeController:

Creating a simple home controller which gives /home end-point it will direct to home.html page.

HomeController.java
package com.onlinetutorialspoint.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class HomeController {

    @GetMapping("/home")
    public String home() {
        return "home";
    }

}

2.3 Application.properties

Since we ran our service application on 8080 port, I am going to make this client application’s port as 8090.

application.properties
server.port=8090

2.4 Thymeleaf Template:

A simple thymeleaf HTML template, providing a simple button. When clicking on the button, the corresponding click event has been handled in home.js.

home.html
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="ISO-8859-1" />
    <title>Spring Boot CORS Example</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <link rel="stylesheet"
          href="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css" />
    <script
            src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
    <script
            src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.0/umd/popper.min.js"></script>
    <script
            src="https://maxcdn.bootstrapcdn.com/bootstrap/4.1.0/js/bootstrap.min.js"></script>
    <script src="/home.js"></script>
</head>
<body>
<br />
<br />
<div class="container" align="center">
    <button id="greet" type="button" class="btn btn-primary">Greet Me</button>
</div>
<h1 id="response"></h1>
</body>
</html>

2.5 Javascript

home.js

Handling click event of the button and calling http://loalhost:8080/greet service endpoint.

home.js
GET: $(document).ready(
    function() {

      // GET REQUEST
      $("#greet").click(function(event) {
        event.preventDefault();
        ajaxGet();
      });

      // DO GET
      function ajaxGet() {
        $.ajax({
          url : "http://localhost:8080/greet",
          success : function(result) {
            $("#response").html(result);
          }
        });
      }
})

2.6 Main-Class:

SpringBootThymeLeafExampleApplication.java
package com.onlinetutorialspoint;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SpringBootThymeLeafExampleApplication {

  public static void main(String[] args) {
    SpringApplication.run(SpringBootThymeLeafExampleApplication.class, args);
  }

}

2.7 Run It:

Terminal
  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.1.5.RELEASE)

2019-06-02 10:40:12.463  INFO 12000 --- [           main] .o.SpringBootThymeLeafExampleApplication : Starting SpringBootThymeLeafExampleApplication on DESKTOP-RN4SMHT with PID 12000 (D:\work\Spring-Boot-ThymeLeaf-Example\target\classes started by Lenovo in D:\work\Spring-Boot-ThymeLeaf-Example)
2019-06-02 10:40:12.469  INFO 12000 --- [           main] .o.SpringBootThymeLeafExampleApplication : No active profile set, falling back to default profiles: default
2019-06-02 10:40:15.884  INFO 12000 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8090 (http)

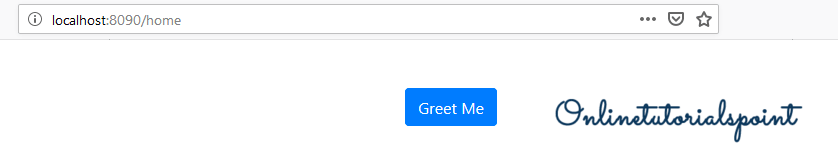

Access the application using http://localhost:8090/home and click on the Greet Me button.

How to Enable Spring Boot CORS 3-min

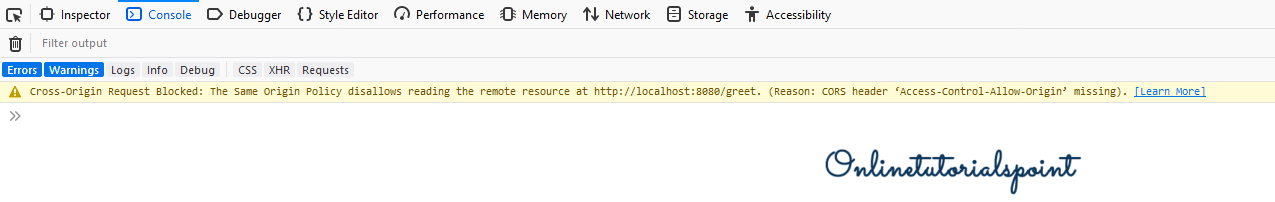

When you click on the above button, nothing will appear on the screen; you can see the possible errors/warnings by inspecting the browser window. Click on F12 key and go to console tab there you would know the issue saying

Cross-Origin Request Blocked: The Same Origin Policy disallows reading the remote resource at http://localhost:8080/greet. (Reason: CORS header ‘Access-Control-Allow-Origin’ missing).
How to Enable Spring Boot CORS 4-min

If you want to dig into this issue more, you can get the more about this issue here.

Let’s fix this issue by taking the advantages of Spring Framework.

3  Enable Spring Boot CORS:

Spring enables CORS by providing the @CrossOrigin annotation. This annotation makes the annotated methods/classes as permitting cross-origin requests.

Let’s permit our /greet method from cross-origin requests.

HelloController.java
package com.onlinetutorialspoint.conroller;

import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

    @GetMapping("/greet")
    @CrossOrigin(origins = "http://localhost:8090")
    public String greet(){
        return "Hello From Spring CORS  Resource";
    }
}

Output:

Now we can see the desired output.

How to Enable Spring Boot CORS 5-min(1)



On the above example, we have enabled the CORS for greet() method for a single domain that is http://localhost:8090. We have different configurable ways to allow it.

3.1 @CrossOrigin at Class/Controller Level:

Enabling CrossOrigin for all the methods under HelloController for the domain http://localhost:8080

HelloController.java
package com.onlinetutorialspoint.conroller;

import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@CrossOrigin(origins = "http://localhost:8090")
public class HelloController {

    @GetMapping("/greet")
    public String greet(){
        return "Hello From Spring CORS  Resource";
    }
}

Enabling @CrossOrigin for all the methods under HelloController for all domains.

HelloController.java
@RestController
@CrossOrigin(origins = "*")
public class HelloController {

    @GetMapping("/greet")
    public String greet(){
        return "Hello From Spring CORS  Resource";
    }
}

3.2 @CrossOrigin at method Level:

Making /greek method accessible for all domains, the rest of the methods may be not accessible based on your configuration.

HelloController.java
@RestController
public class HelloController {

    @GetMapping("/greet")
    @CrossOrigin(origins = "*")
    public String greet(){
        return "Hello From Spring CORS  Resource";
    }
}

3.3 @CrossOrigin at Application Level:

Create a WebMvcConfigurer bean to enable cors mapping.

Here, I am making entire application request mappings accessible for http://localhost:8080.

HelloController.java
    @Bean
    public WebMvcConfigurer configurer(){
      return new WebMvcConfigurer(){
        @Override
        public void addCorsMappings(CorsRegistry registry) {
          registry.addMapping("/*")
              .allowedOrigins("http://localhost:8080");
        }
  };
}

Making entire application request mappings accessible for all origins

SpringBootCorsExampleApplication.java
@Bean
public WebMvcConfigurer configurer(){
  return new WebMvcConfigurer(){
    @Override
    public void addCorsMappings(CorsRegistry registry) {
      registry.addMapping("/*")
          .allowedOrigins("*");
    }
  };
}

This is how we can enable the CROS in Spring Boot.

References:

Download Source from GIT:

Happy Learning 🙂
