Spring boot exception handling rest service (CRUD) operations

By | 2018-11-11T10:37:57+00:00 September 2nd, 2018|Spring Boot|0 Comments

In this tutorials, we will show you how to handle exceptions in Spring Boot REST API application.

Spring Boot Exception Handling:

This guide helps you to understand how to define generic/global exception handlers in spring boot application. Here I am going to implement a complete Spring boot restful service with all the CRUD operations and handling proper exception handling.

Technologies:

  • Spring Boot Strater 2.0.4 RELEASE
  • Spring Boot Starter WEB
  • Spring Boot Starter JDBC
  • MySql Connector
  • Java 1.8

Application Structure:

Spring Boot Exception Handling Example

Dependencies:

pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.onlinetutorialspoint</groupId>
  <artifactId>Spring-Boot-ExceptionHandling</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>Spring-Boot-ExceptionHandling</name>
  <description>Spring Boot Exception Handling Example</description>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.0.4.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
  </properties>
  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-jdbc</artifactId>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <scope>runtime</scope>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
    </plugins>
  </build>
</project>

Creating a Model class:

Item.java
package com.onlinetutorialspoint.model;

public class Item {
    private int id;
    private String name;
    private String category;

    public Item() {
    }

    public Item(int id, String name, String category) {
        this.id = id;
        this.name = name;
        this.category = category;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getCategory() {
        return category;
    }

    public void setCategory(String category) {
        this.category = category;
    }
}

Preparing Spring Boot Error Response classes. This is the main response class representing response status, error message, and timestamp.

ItemErrorResponse.java
package com.onlinetutorialspoint.exception;

public class ItemErrorResponse {

    private int status;

    public ItemErrorResponse() {
    }

    private String message;
    private  long timeStamp;

    public ItemErrorResponse(int status, String message, long timeStamp) {
        this.status = status;
        this.message = message;
        this.timeStamp = timeStamp;
    }

    public int getStatus() {
        return status;
    }

    public void setStatus(int status) {
        this.status = status;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }

    public long getTimeStamp() {
        return timeStamp;
    }

    public void setTimeStamp(long timeStamp) {
        this.timeStamp = timeStamp;
    }
}

Create ItemNotFoundException class, responsible to handle scenarios like when an item is not available in our database.

ItemNotFoundException.java
package com.onlinetutorialspoint.exception;

public class ItemNotFoundException extends RuntimeException{

    public ItemNotFoundException(String message) {
        super(message);
    }

    public ItemNotFoundException(String message, Throwable cause) {
        super(message, cause);
    }

    public ItemNotFoundException(Throwable cause) {
        super(cause);
    }
}

Create a global ItemExceptionHandler, which handles ItemNotFoundException and all types of exceptions like 403, 500 and so on.

ItemExceptionHandler.java
package com.onlinetutorialspoint.exception;

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;

@ControllerAdvice
public class ItemExceptionHandler {

    @ExceptionHandler
    public ResponseEntity<ItemErrorResponse> handleException(ItemNotFoundException ine){
        ItemErrorResponse errorResponse = new ItemErrorResponse();
        errorResponse.setStatus(HttpStatus.NOT_FOUND.value());
        errorResponse.setMessage(ine.getMessage());
        errorResponse.setTimeStamp(System.currentTimeMillis());
        return new ResponseEntity<ItemErrorResponse>(errorResponse,HttpStatus.NOT_FOUND);
    }

    @ExceptionHandler

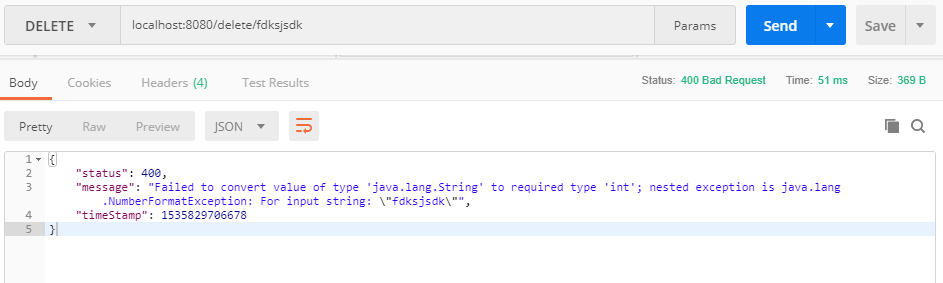

    public ResponseEntity<ItemErrorResponse> handleException(Exception ex){
        ItemErrorResponse errorResponse = new ItemErrorResponse();
        errorResponse.setStatus(HttpStatus.BAD_REQUEST.value());
        errorResponse.setMessage(ex.getMessage());
        errorResponse.setTimeStamp(System.currentTimeMillis());
        return new ResponseEntity<ItemErrorResponse>(errorResponse,HttpStatus.BAD_REQUEST);
    }
}

@ControllerAdvice is used to apply the exception handling technique across the application. This annotation can be used on top of the class, then the class will act as a controller-advice.

@ControllerAdvice is something similar to an interceptor or a filter. It Pre-processes the request to the controller and Post-process the response to handle exceptions.

Define exception handler methods using @ExceptionHandler annotation given by the Spring Framework. It is going to return ResponseEntity.

ResponseEntity is a simple wrapper of HTTP response object, it provides fine-grained control to specify HTTP status codes, HTTP headers and response body.

Creating ItemRepository having all CRUD operations.

ItemRepository.java
package com.onlinetutorialspoint.repo;

import com.onlinetutorialspoint.exception.ItemNotFoundException;
import com.onlinetutorialspoint.model.Item;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
public class ItemRepository {

    @Autowired
    JdbcTemplate template;

    /*Getting all Items from table*/
    public List<Item> getAllItems(){
        List<Item> items = template.query("select id, name,category from item",(result,rowNum)->new Item(result.getInt("id"),
                result.getString("name"),result.getString("category")));
        return items;
    }
    /*Getting a specific item by item id from table*/
    public Item getItem(int itemId){
        Item item = null;
        String query = "SELECT * FROM ITEM WHERE ID=?";
        try{
            item = template.queryForObject(query,new Object[]{itemId},new BeanPropertyRowMapper<>(Item.class));
        }catch(Exception e){

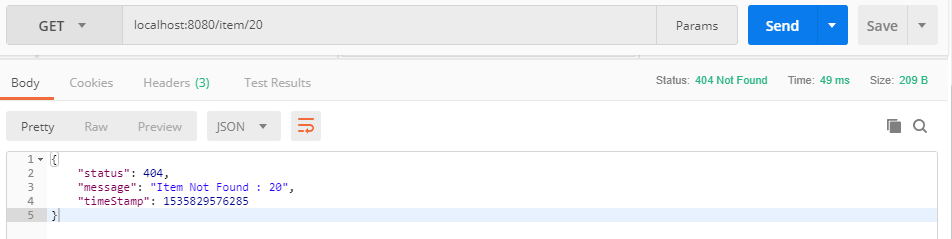

            throw new ItemNotFoundException("Item Not Found : "+itemId);
        }
        return item;
    }
    /*Adding an item into database table*/
    public int addItem(Item item){
        String query = "INSERT INTO ITEM VALUES(?,?,?)";
        return template.update(query,new Object[] {
                Integer.valueOf(item.getId()),item.getName(),item.getCategory()
        });
    }
    /*delete an item from database*/
    public int deleteItem(int id){
        String query = "DELETE FROM ITEM WHERE ID =?";
        int size = template.update(query,id);
        if(size == 0){

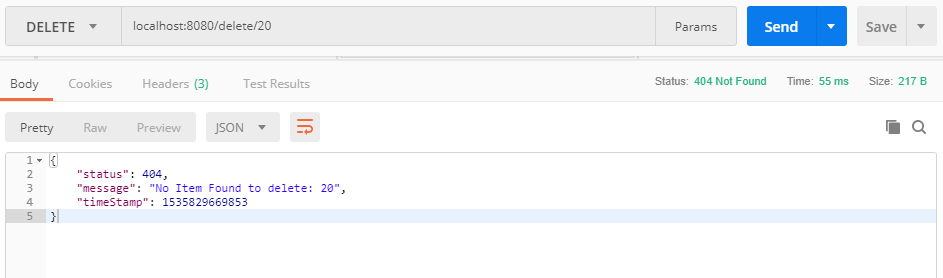

            throw new ItemNotFoundException("No Item Found to delete: "+id);
        }
        return size;
    }

    /*update an item from database*/
    public void updateItem(Item item){
        String query = "UPDATE ITEM SET name=?, category=? WHERE id =?";
        template.update(query,
                new Object[] {
                        item.getName(),item.getCategory(), Integer.valueOf(item.getId())
                });
    }
}

Creating Spring Boot RestController class

ItemController.java
package com.onlinetutorialspoint.controller;

import com.onlinetutorialspoint.exception.ItemNotFoundException;
import com.onlinetutorialspoint.model.Item;
import com.onlinetutorialspoint.repo.ItemRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.util.UriComponentsBuilder;

import java.util.List;

@RestController
public class ItemController {
    @Autowired
    ItemRepository itemRepo;

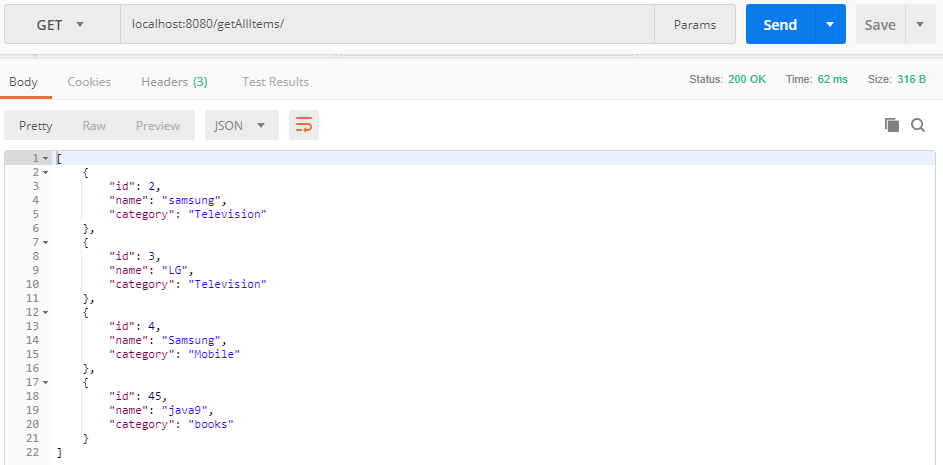

    @RequestMapping("/getAllItems")
    @ResponseBody
    public ResponseEntity<List<Item>> getAllItems(){
        List<Item> items =  itemRepo.getAllItems();
        return new ResponseEntity<List<Item>>(items, HttpStatus.OK);
    }

    @GetMapping("/item/{itemId}")
    @ResponseBody
    public ResponseEntity<Item> getItem(@PathVariable int itemId){
        if(itemId <= 0){
            throw new ItemNotFoundException("Invalid ItemId");
        }
        Item item = itemRepo.getItem(itemId);
        return new ResponseEntity<Item>(item, HttpStatus.OK);
    }

    @PostMapping(value = "/addItem",consumes = {"application/json"},produces = {"application/json"})
    @ResponseBody
    public ResponseEntity<Item> addItem(@RequestBody Item item,UriComponentsBuilder builder){
        itemRepo.addItem(item);
        HttpHeaders headers = new HttpHeaders();
        headers.setLocation(builder.path("/addItem/{id}").buildAndExpand(item.getId()).toUri());
        return new ResponseEntity<Item>(headers, HttpStatus.CREATED);
    }

    @PutMapping("/updateItem")
    @ResponseBody
    public ResponseEntity<Item> updateItem(@RequestBody Item item){
        if(item != null){
            itemRepo.updateItem(item);
        }
        return new ResponseEntity<Item>(item, HttpStatus.OK);
    }

    @DeleteMapping("/delete/{id}")
    @ResponseBody
    public ResponseEntity<Void> deleteItem(@PathVariable int id){
        itemRepo.deleteItem(id);
        return new ResponseEntity<Void>(HttpStatus.ACCEPTED);
    }
}

Main class

Application.java
package com.onlinetutorialspoint;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Application {

  public static void main(String[] args) {
    SpringApplication.run(Application.class, args);
  }
}

Run the application:

console
mvn spring-boot:run
[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building Spring-Boot-ExceptionHandling 0.0.1-SNAPSHOT
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] >>> spring-boot-maven-plugin:2.0.4.RELEASE:run (default-cli) > test-compile @ Spring-Boot-ExceptionHandling >>>
[INFO]
[INFO] --- maven-resources-plugin:3.0.2:resources (default-resources) @ Spring-Boot-ExceptionHandling ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] Copying 1 resource
[INFO] Copying 0 resource
[INFO]
[INFO] --- maven-compiler-plugin:3.7.0:compile (default-compile) @ Spring-Boot-ExceptionHandling ---
[INFO] Nothing to compile - all classes are up to date
[INFO]
[INFO] --- maven-resources-plugin:3.0.2:testResources (default-testResources) @ Spring-Boot-ExceptionHandling ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory E:\work\Spring-Boot-ExceptionHandling\src\test\resources
[INFO]
[INFO] --- maven-compiler-plugin:3.7.0:testCompile (default-testCompile) @ Spring-Boot-ExceptionHandling ---
[INFO] No sources to compile
[INFO]
[INFO] <<< spring-boot-maven-plugin:2.0.4.RELEASE:run (default-cli) < test-compile @ Spring-Boot-ExceptionHandling <<<
[INFO]
[INFO]
[INFO] --- spring-boot-maven-plugin:2.0.4.RELEASE:run (default-cli) @ Spring-Boot-ExceptionHandling ---

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v2.0.4.RELEASE)

2018-08-27 11:40:24.880  INFO 4584 --- [           main] com.onlinetutorialspoint.Application     : Starting Application on DESKTOP-RN4SMHT with PID 4584 (E:\work\Spring-Boot-Excepti
onHandling\target\classes started by Lenovo in E:\work\Spring-Boot-ExceptionHandling)
2018-08-27 11:40:24.896  INFO 4584 --- [           main] com.onlinetutorialspoint.Application     : No active profile set, falling back to default profiles: default
2018-08-27 11:40:25.146  INFO 4584 --- [           main] ConfigServletWebServerApplicationContext : Refreshing org.springframework.boot.web.servlet.context.AnnotationConfigServletWeb
ServerApplicationContext@2de77997: startup date [Mon Aug 27 11:40:25 IST 2018]; root of context hierarchy
2018-08-27 11:40:31.161  INFO 4584 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
2018-08-27 11:40:31.317  INFO 4584 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2018-08-27 11:40:31.317  INFO 4584 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet Engine: Apache Tomcat/8.5.32
2018-08-27 11:40:31.348  INFO 4584 --- [ost-startStop-1] o.a.catalina.core.AprLifecycleListener   : The APR based Apache Tomcat Native library which allows optimal performance in pro
duction environments was not found on the java.library.path: [C:\Program Files\Java\jdk1.8.0_161\bin;C:\WINDOWS\Sun\Java\bin;C:\WINDOWS\system32;C:\WINDOWS;C:\ProgramData\Oracle\Java
\javapath;C:\oraclexe\app\oracle\product\11.2.0\server\bin;C:\WINDOWS\system32;C:\WINDOWS;C:\WINDOWS\System32\Wbem;C:\WINDOWS\System32\WindowsPowerShell\v1.0\;C:\Program Files (x86)\
MySQL\MySQL Server 5.5\bin;C:\php;C:\Apache24;C:\Apache24\bin;C:\Program Files\Java\jdk1.8.0_161\bin;D:\Softwares\apache-maven-3.5.2\bin;C:\Program Files\Git\cmd;C:\Program Files\Git
\mingw64\bin;C:\Program Files\Git\usr\bin;D:\Softwares\apache-ant-1.10.2\bin;C:\ProgramData\chocolatey\bin;;C:\WINDOWS\System32\OpenSSH\;C:\Program Files\nodejs\;C:\Users\Lenovo\AppD
ata\Local\Programs\Python\Python36\Scripts\;C:\Users\Lenovo\AppData\Local\Programs\Python\Python36\;C:\Users\Lenovo\AppData\Local\Microsoft\WindowsApps;C:\Users\Lenovo\AppData\Local\
atom\bin;C:\Users\Lenovo\AppData\Local\Microsoft\WindowsApps;;C:\Program Files\Microsoft VS Code\bin;C:\Program Files\Docker Toolbox;C:\Users\Lenovo\AppData\Roaming\npm;.]
2018-08-27 11:40:31.567  INFO 4584 --- [ost-startStop-1] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2018-08-27 11:40:31.583  INFO 4584 --- [ost-startStop-1] o.s.web.context.ContextLoader            : Root WebApplicationContext: initialization completed in 6468 ms
2018-08-27 11:40:31.786  INFO 4584 --- [ost-startStop-1] o.s.b.w.servlet.ServletRegistrationBean  : Servlet dispatcherServlet mapped to [/]
2018-08-27 11:40:31.786  INFO 4584 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'characterEncodingFilter' to: [/*]
2018-08-27 11:40:31.786  INFO 4584 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'hiddenHttpMethodFilter' to: [/*]
2018-08-27 11:40:31.786  INFO 4584 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'httpPutFormContentFilter' to: [/*]
2018-08-27 11:40:31.786  INFO 4584 --- [ost-startStop-1] o.s.b.w.servlet.FilterRegistrationBean   : Mapping filter: 'requestContextFilter' to: [/*]
2018-08-27 11:40:32.911  INFO 4584 --- [           main] o.s.w.s.handler.SimpleUrlHandlerMapping  : Mapped URL path [/**/favicon.ico] onto handler of type [class org.springframework.
web.servlet.resource.ResourceHttpRequestHandler]
2018-08-27 11:40:33.833  INFO 4584 --- [           main] s.w.s.m.m.a.RequestMappingHandlerAdapter : Looking for @ControllerAdvice: org.springframework.boot.web.servlet.context.Annota
tionConfigServletWebServerApplicationContext@2de77997: startup date [Mon Aug 27 11:40:25 IST 2018]; root of context hierarchy
2018-08-27 11:40:34.041  INFO 4584 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/item/{itemId}],methods=[GET]}" onto public org.springframework.http.Res
ponseEntity<com.onlinetutorialspoint.model.Item> com.onlinetutorialspoint.controller.ItemController.getItem(int)
2018-08-27 11:40:34.056  INFO 4584 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/delete/{id}],methods=[DELETE]}" onto public org.springframework.http.Re
sponseEntity<java.lang.Void> com.onlinetutorialspoint.controller.ItemController.deleteItem(int)
2018-08-27 11:40:34.056  INFO 4584 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/getAllItems]}" onto public org.springframework.http.ResponseEntity<java
.util.List<com.onlinetutorialspoint.model.Item>> com.onlinetutorialspoint.controller.ItemController.getAllItems()
2018-08-27 11:40:34.056  INFO 4584 --- [           main] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped "{[/updateItem],methods=[PUT]}" onto public org.springframework.http.Respon
seEntity<com.onlinetutorialspoint.model.Item> com.onlinetutorialspoint.controller.ItemController.updateItem(com.onlinetutorialspoint.model.Item)
.........
.........

Access Application:

Getting all Items :

Springboot Exception Handling

Getting a specific Item:

Springboot Exception Handling 2

Getting unavailable Item:

Springboot Exception Handling

Deleting unavailable Item:

Springboot Exception Handling 11

Invalid Item code format (General Exception handler)

Springboot Exception Handling 12

Happy Learning 🙂

Download Example

About the Author:

Hi Folks, you have reach this so far, that shows you like what you are learning. Then why don't you support us to improve for bettor tutorials by leaving your valuable comments and why not you keep in touch with us for latest updates on your favorite blog @ facebook , twitter , Or Google+ ,

Leave A Comment
