How to install RabbitMQ on Windows 10

By |2019-05-30T06:35:50+05:30May 29th, 2019|windows|

In this tutorial, we will see how to install RabbitMQ on Windows 10 operating system.

Install RabbitMQ on Windows:

Installing RabbitMQ in windows is a straight and straightforward process; the only thing you have to know about your system information and download appropriate RabbitMQ installer.

Version Information:

  • Windows 10 Pro 64 Bit
  • RabbitMQ Server 3.7.15
  • otp_win64_22.0 (Erlang)

Prerequisites:

RabbitMQ runs on Erlang virtual machine. So that to install/run the RabbitMQ, initially we have to install the Erlang. If you already installed Erlang on your machine, you can skip this step and directly move to RabbitMQ installation.

1. Install Erlang on Windows:

Download the latest Erlang from the official website for me it is OTP 22.0

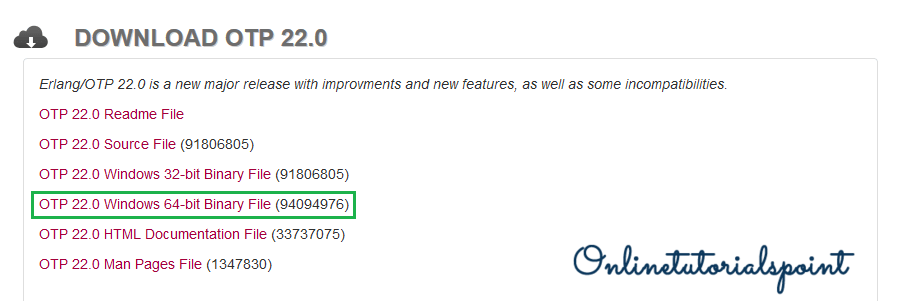

How to install RabbitMQ on Windows 10-min

Click on the above highlighted OTP 22.0 windows xx-bit Binary file; it will be around 94+ MB in size.

After successful download double click on the otp_win64_22.0 file then you would see the below setup window.

How to install RabbitMQ on Windows 10 2-min

Select the Erlang checkbox and click on the Next button. Then choose the destination folder to install the Erlang and click on the Next button.

How to install RabbitMQ on Windows 10 3-min

Then you would prompt to select the start menu folder and click on the install button.

How to install RabbitMQ on Windows 10 4-min

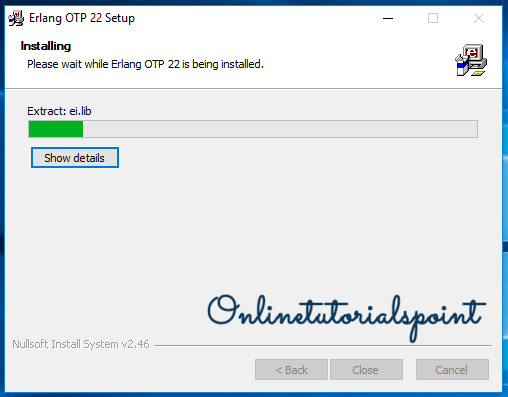

Now the Erlang installation will start; it will take a while to complete.

How to install RabbitMQ on Windows 10 5-min

After a successful install, probably you would see the below successful window.

How to install RabbitMQ on Windows 10 6-min

Click on the close button. Now you completed the Erlang installation so that you can install the RabbitMQ now.

2. Install RabbitMQ on Windows 10:

Download the latest RabbitMQ server from the official website for me it is 3.7.15.

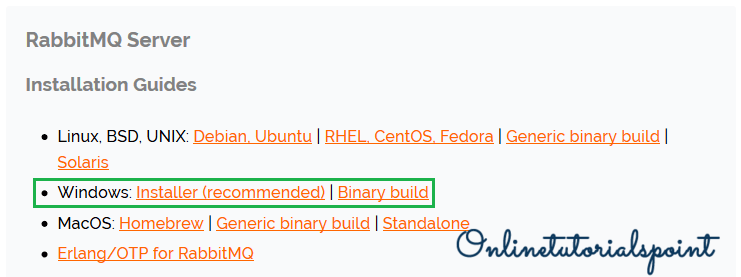

How to install RabbitMQ on Windows 10 7-min

Click on the above-highlighted link to redirect RabbitMQ windows installer.

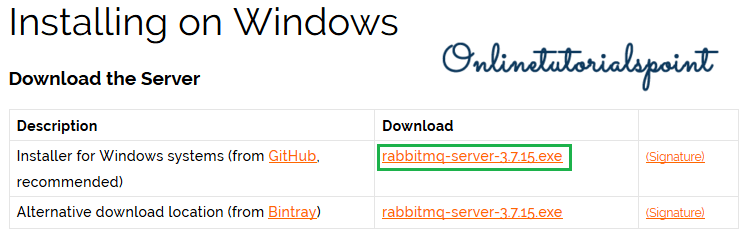

How to install RabbitMQ on Windows 10 8-min

Click on the above highlighted rabbitmq-server-x.x.xx.exe file to download, after downloading double click on the .exe file to install. Then you would see the below installation wizard.

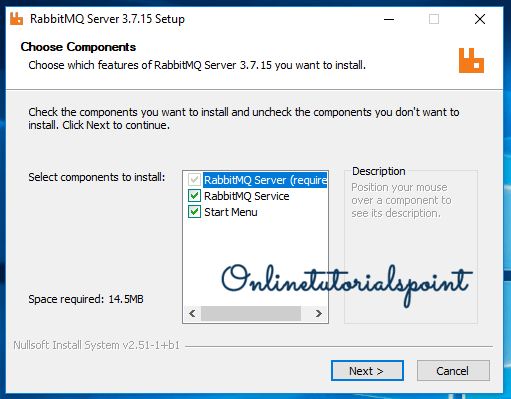

How to install RabbitMQ on Windows 10 9-min

Select RabbitMQ Service, Start Menu options and click on the Next button.

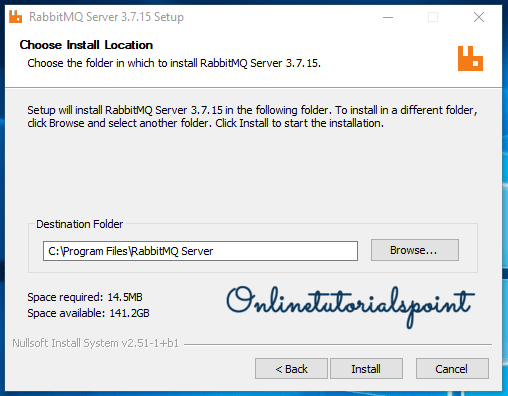

How to install RabbitMQ on Windows 10 10-min

Browse the installation folder and click on the Next button. Then you would see the installation progress.

How to install RabbitMQ on Windows 10 13-min

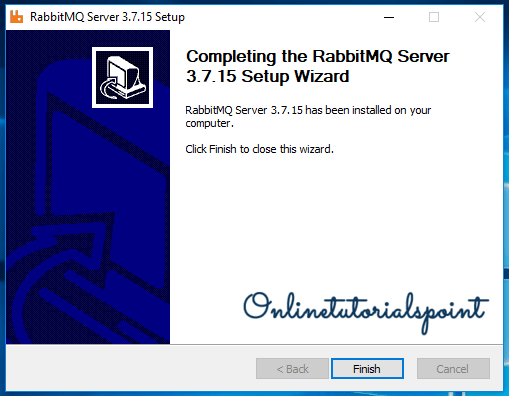

After this step, you would see the below successful message then click on Finish.

How to install RabbitMQ on Windows 10 14-min

Now the RabbitMQ installation has been completed.

3. Enable RabbitMQ Management Plugin:

RabbitMQ runs, by default as a windows service, if you are very much interested in working with the command line tool, it’s up to you.

But anyone wants to access it from the web interface, who are need to enable the RabbitMQ management plugin by using the below command on your RabbitMQ command prompt.

Open RabbitMQ command prompt (which will be install as part the above installation steps) and hit the below command.

C:\Program Files\RabbitMQ Server\rabbitmq_server-3.7.15\sbin
C:\Program Files\RabbitMQ Server\rabbitmq_server-3.7.15\sbin>rabbitmq-plugins enable rabbitmq_management
Enabling plugins on node rabbit@DESKTOP-RN4SMHT:
rabbitmq_management
The following plugins have been configured:
  rabbitmq_management
  rabbitmq_management_agent
  rabbitmq_web_dispatch
Applying plugin configuration to rabbit@DESKTOP-RN4SMHT...
The following plugins have been enabled:
  rabbitmq_management
  rabbitmq_management_agent
  rabbitmq_web_dispatch

started 3 plugins.

Now everything Done!

4. Verification:

To check everything as expected open any browser and access the http://localhost:15672 URL then you would see the below RabbitMQ login page.

How to install RabbitMQ on Windows 10 15-min

Default credentials are:

User Name: guest

Password: guest

Then you would see the following RabbitMQ home page

How to install RabbitMQ on Windows 10 16-min

Done!
